Linn Sara product history
With my second pair of Saras came a number of photocopied sheets of info. Although it didn't say 'Linn' anywhere on them, it does
look like official Linn info. Below I've typed up the Sara history. The next few pages cover removal of drive units (these are
scanned at the moment, when I get a moment I'll try and type them up).
SARA HISTORY
Introduced: 1978
Discontinued: 1989
SARA HISTORY
Introduced: 1978
Discontinued: 1989
| Upgrade | Date | Serial No. |
| Crossover: | ||
| Bi-wiring introduced to Sara 9 | Oct. 1988 | 20,913/4 |
| Sara 9: | ||
| Introduced, incorporating changes to treble unit (countersunk screws), bass unit
(white disc removed and plastic surround changed to thicker rubber), crossover (now
4 ohm) |
Sept. 1987 | 18,299/300 |
| Sockets: | ||
| Replaced cannon sockets with two 4mm sockets |
June 1985 | 16,300/1 |
| Bass unit: | ||
| Surround changed to plastic material |
May 1985 | 16,051/2 |
| Treble unit: | ||
| Smoother response. Incorporates Linn logo on front plate |
May 1984 | 14,731/2 |
| Crossover | ||
| Resistor added in parallel with treble coil |
Feb. 1983 | 13,249/50 |
| Unit damping: | ||
| Painted with sound deadening paint.
Cabinet Material: Material change; now has rounded front |
Mar. 1982 | 10,850/1 |
| Drive unit: | ||
| Sealer changed from mastic to silicone sealant |
Jan. 1980 | 10,440/1 |
| Baffle: | ||
| Changed from welded plastic to one piece carbon filled ABS with removeable ring for front
bass unit. Bass unit venting increased |
Oct. 1979 | 10,280 |

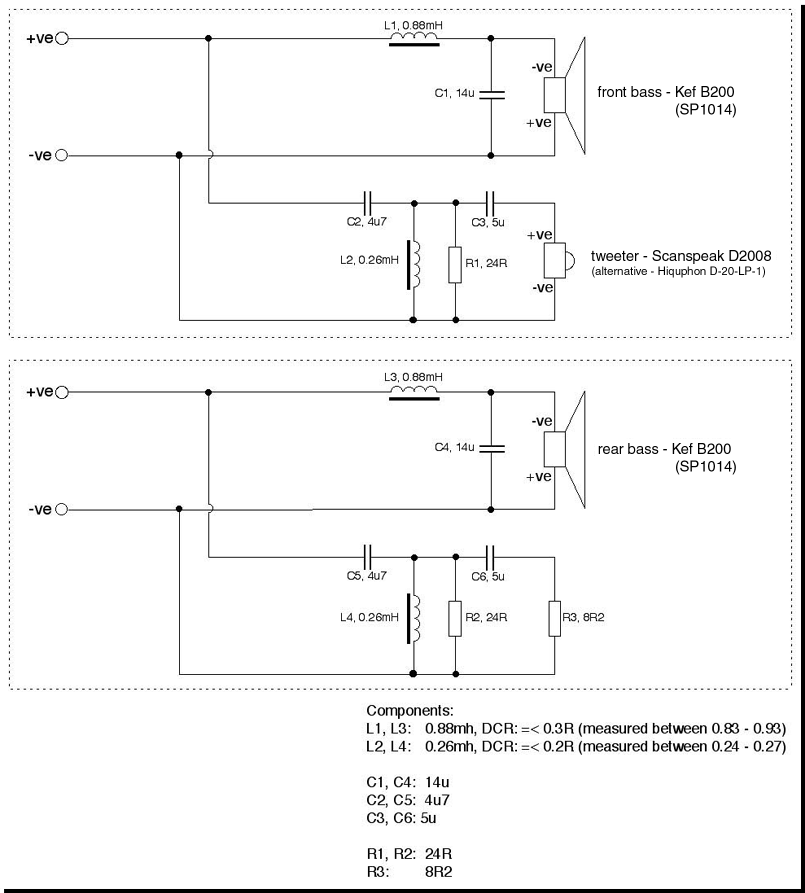

Mine are actually an active pair that the previous owner had paired with the passive crossover from
another (the earlier two-board version). This makes it simple to sketch out the circuit. The inductor
values are an average based on measurement with an LCR bridge.
Thanks to the good folks at Pink Fish, I've been able to update the crossover with the actual variant of Kef bass unit and later tweeter. My thanks to 'PL135' and 'RustyB' for the info (see this thread for further info).
