A 'Value' power supply for the ALWSR Super regulator

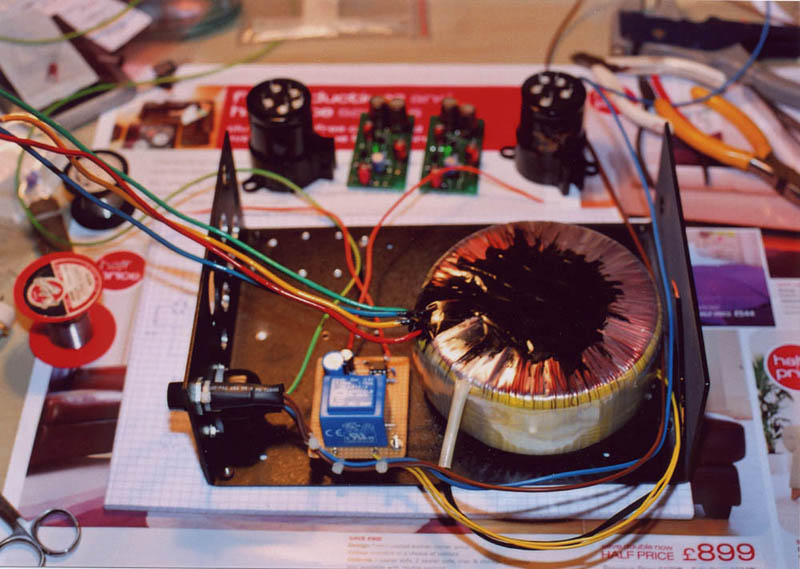

Assembly underway. Note the black 'mess' on top of the transformer. I thought I'd try potting the centre to allow fixing via a single screw, but as you can see there was a bit of leakage!

The small transformer (blue cube) on the veroboard powers the delay circuit for the output muting relay
