A 'ValueCap' power supply for the ALWSR Super regulator
This was the second of two power supplies for the
Andrew Weekes 'super reg' design.
This one was built for a friend to use with his Nac72/Nap250 combo.
An important aspect for these two PSUs was to keep costs down (hence the 'ValueCap' tag).
To this end existing casework was utilised/recycled, and cheap/reused capacitors and transformers were
pressed into service.

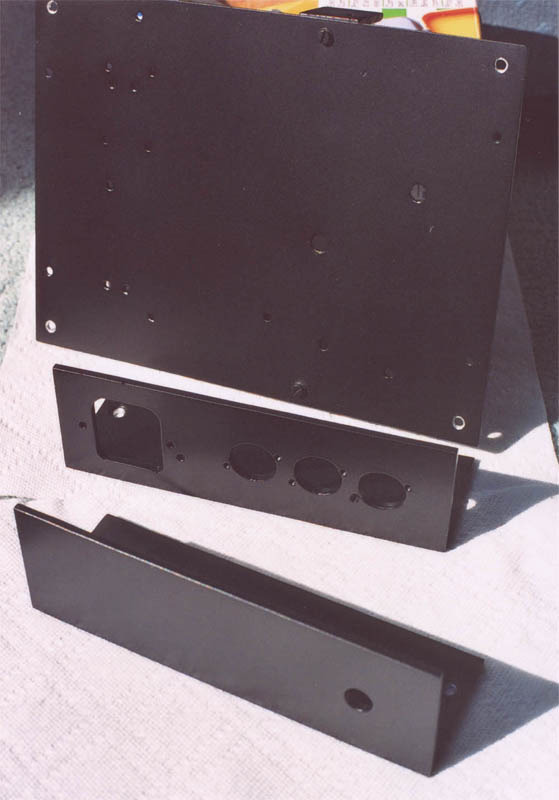

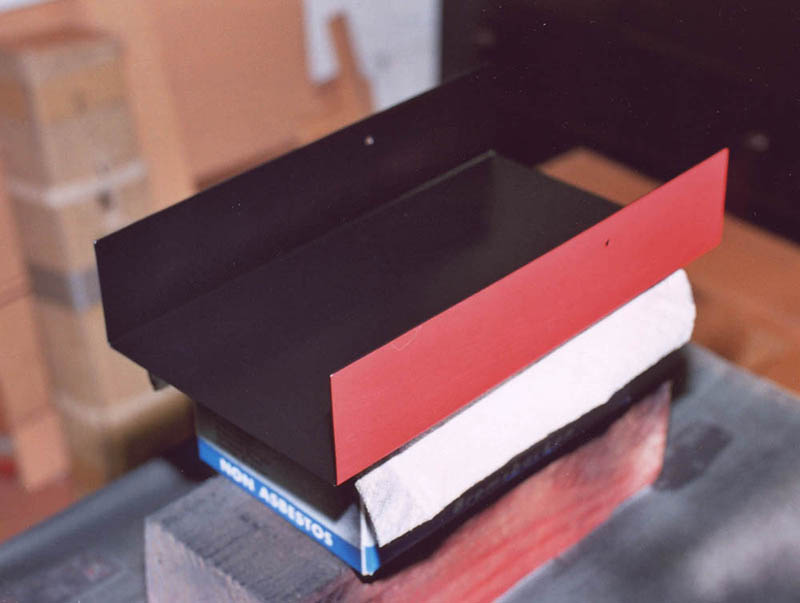

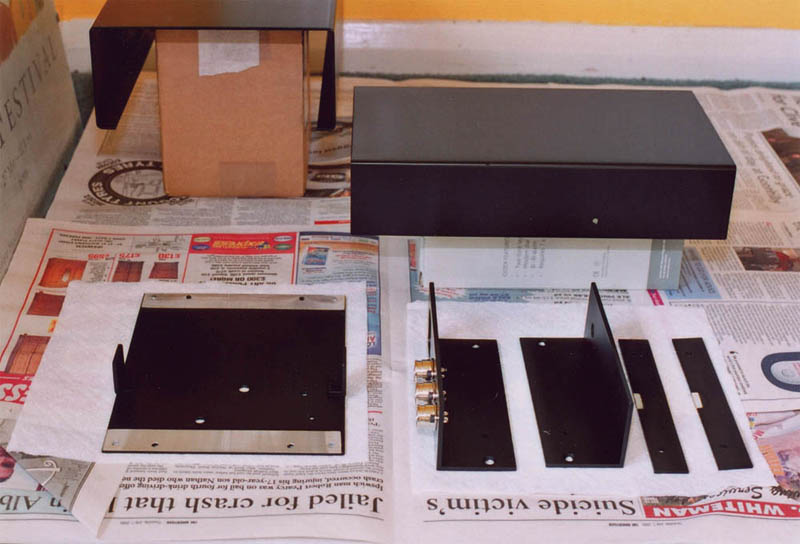

Here, you can see the freshly re-sprayed casework - I originally built this case around 1982 to house a nicad powersupply for the ETI System A pre-amp I had just built. It housed 20 1.8Ah Saft nicads liberated from my brother who used to use them to power fast-electric R/C boats. A few years later, after building my first Naim-style pre-amp, the nicads gave way to a simple LM317 supply with an old ILP transformer donated from my first power-amp. This lasted less than a year before being ousted by a much bigger, multiple output supply. After this the case saw brief service powering halogen lights (minus the 317 regulator!) before languishing in the shed for about 20 years.
Here, you can see the freshly re-sprayed casework - I originally built this case around 1982 to house a nicad powersupply for the ETI System A pre-amp I had just built. It housed 20 1.8Ah Saft nicads liberated from my brother who used to use them to power fast-electric R/C boats. A few years later, after building my first Naim-style pre-amp, the nicads gave way to a simple LM317 supply with an old ILP transformer donated from my first power-amp. This lasted less than a year before being ousted by a much bigger, multiple output supply. After this the case saw brief service powering halogen lights (minus the 317 regulator!) before languishing in the shed for about 20 years.
